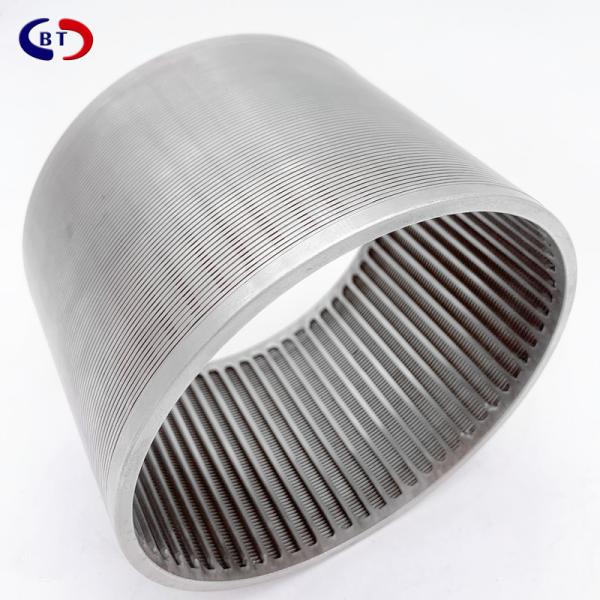

stainless steel Wedge wire screen Johnson screen
Johnson Wire Screen Description
Anping Baitong Johnson Wire Screen are made by welding vee-shaped on support rods,creating slots
which enlarge inwardly,meeting the most demanding standards for ruggedness, durability, consistency
and slot openings.
The vee-shaped opening allows only two contact points with the particles, thus preventing any risk of
clogging.
Johnson Wire Screen Specification:
| Material | mainly stainless steel, carbon steel galvanized, Aluminum Alloy or other customer requirements material. |
| Grade | 2205, 304,304L, 316L,201 |
| O.D | 89mm 117mm 219mm 273mm 325mm |
| Size | 3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12" |
| Slot size | 0.025mm-30mm, arbitrarily selected screen size to meet different construction requirements. |
| Length | 3meters , can up to 6meters |
| Connection Mode | threaded connection, flange connection |
| Diameter | 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm. |
| Wire Shape | wedge wire |
| Characteristics | Not easy to jam Slot even Strong corrosion resistance |
Johnson Wire Screen Characteristics
♦Structure principle: the screen pipe is composed of spiral surface wire wound on the axial support rod,
and the support rod and the surface wire are connected with each other by resistance welding.
♦Good adaptability of temperature change: obviously, compared with ordinary plastic filter element,
the temperature application range of stainless steel wire wound screen tube of leiler company is much
wider than that of plastic filter element.
♦Corrosion resistance: for neutral water, acid water, alkaline water, hydrochloric acid, sulfuric acid, salt
and so on, if these materials are properly selected, the filtration equipment can be operated economically
and safely.
Johnson Wire Screen Application Market:
Johnson Wire Screen Packing&Delivery:
|
|
