Sintered mesh filter information:
Multilayer sintered metal mesh is a new type of filter material
with high mechanical strength and overall rigid structure, which is
made of multilayer woven metal mesh through special laminated
pressing and vacuum sintering.
Its each layer screen mesh crisscross each other, forming a
homogenous and ideal filter structure, not only overcome the common
low strength, poor rigidity metal screen, mesh shape is not stable,
but also on the material of the pore size, permeability and
strength characteristics to design reasonable matching and making
it has excellent filtration precision, filtration resistance,
mechanical strength, wear resistance, heat resistance and
processability, comprehensive performance is better than sintered
metal powders, ceramics, fibers, filter cloth, filter paper and
other types of filtering material.
Sintered mesh filter Technical Data Sheet:
| Product Name | Stainless Steel 316 15um For Oil Filter Sintered Wire Mesh Filter |
| Application | Water filter/Air filter/sand filter/oil filter |
| Material | 304/316/904L/316Lor other stainless steel |
| Color | Silver |
| No. | nominal accuracy | actual accuracy | permeability | pressure(pa) | |
| (μ m) | (μ m) | (L/min·cm·pa) | |||
| sw1 | 1 | 6-7 | 4500 | ||
| sw2 | 2 | 8-9 | (1-6) ×10 | 4300 | |
| sw5 | 5 | 11-13 | (1-6) ×10 | 3000 | |
| sw10 | 10 | 16-18 | (5-10) ×10 | 2800 | |
| sw15 | 15 | 24-26 | (5-10) ×10 | 2000 | |
| sw20 | 20 | 28-32 | (1-5) ×10 | 1800 | |
| sw25 | 25 | 34-36 | (1-5) ×10 | 1500 | |
| sw30 | 30 | 40-45 | (1-5) ×10 | 1230 | |
| sw40 | 40 | 50-55 | (5-10) ×10 | 1020 | |
| sw50 | 50 | 71-80 | (5-10) ×10 | 860 | |
| sw70 | 70 | 86-95 | (1-5) ×10 | 690 | |
| sw100 | 100 | 110-120 | ≥5 ×10 | 630 | |
| sw150 | 150 | ≥5 ×10 | |||
| sw200 | 200 | ≥5 ×10 | |||
| sw300 | 300 | ≥5 ×10 |
Sintered mesh filter Advantages:
All stainless steel structure, corrosion resistance, high
temperature resistance;No leakage, no medium off;Sintered mesh
filter layer, can withstand high reverse flow;Repeatedly
clean;1-200 microns accuracy;ISO 9000 quality system certification;
High flow;High porosity, good permeability, very low pressure
drop;High precision;Excellent mechanical strength, high pressure
resistance up to 200Kg;Easy to clean, pulse backwash;Good
processing performance, folding, welding, bonding;Flexibility of
Design
Sintered mesh filter Application:
1. Precise filtration of various hydraulic oils and lubricants in the mechanical industry;
2. Filtration and purification of various polymer melts in chemical fiber thin film industry, filtration of various high-temperature and corrosive liquids in petrochemical industry, filtration, washing and drying of materials in pharmaceutical industry;
3. Application of gas homogenization in powder industry, fluidized plate in iron and steel industry;
4. Dividers in explosion-proof electrical appliances, etc.
5.Used for high pressure backwash oil filter

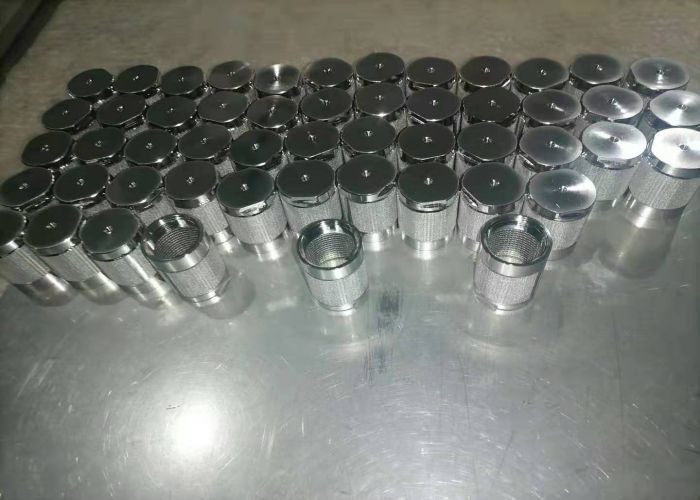

Sintered mesh filter show:
