Filter Plater And Tubeinformation:
This is a kind of sintered mesh made of multilayer plain woven
square hole mesh. Because of the high opening rate of the square
hole mesh, the sintered mesh made of high air permeability, small
resistance, large flux and other characteristics.
It is mainly used for filtration of various gases and liquids.
Because each layer of screen has greater selectivity, its structure
can be customized according to user requirements.
In addition to the standard material SUS304(AISI304),
SUS316(AISI316), SUS316L(AISI316L), can also be customized for
customers to make Hastelloy alloy, Monel alloy, Inconel and other
special alloys.
Filter Plater And Tube Technical Data Sheet:
| Product Name | Sintere wire mesh filter plate |
| Application | Water filter/Air filter/oil filter |
| Material | 304/316/904L/316Lor other stainless steel |
| Color | Silver |
| No. | nominal accuracy | actual accuracy | permeability | pressure(pa) | |
| (μ m) | (μ m) | (L/min·cm·pa) | |||
| sw1 | 1 | 6-7 | 4500 | ||
| sw2 | 2 | 8-9 | (1-6) ×10 | 4300 | |
| sw5 | 5 | 11-13 | (1-6) ×10 | 3000 | |
| sw10 | 10 | 16-18 | (5-10) ×10 | 2800 | |
| sw15 | 15 | 24-26 | (5-10) ×10 | 2000 | |
| sw20 | 20 | 28-32 | (1-5) ×10 | 1800 | |
| sw25 | 25 | 34-36 | (1-5) ×10 | 1500 | |
| sw30 | 30 | 40-45 | (1-5) ×10 | 1230 | |
| sw40 | 40 | 50-55 | (5-10) ×10 | 1020 | |
| sw50 | 50 | 71-80 | (5-10) ×10 | 860 | |
| sw70 | 70 | 86-95 | (1-5) ×10 | 690 | |
| sw100 | 100 | 110-120 | ≥5 ×10 | 630 | |
| sw150 | 150 | ≥5 ×10 | |||
| sw200 | 200 | ≥5 ×10 | |||
| sw300 | 300 | ≥5 ×10 |
Filter Plater And Tube Advantages:
1. High strength, good rigidity: with high mechanical strength and compressive strength, good processing, welding and assembly performance, easy to use.
2. Uniform and stable accuracy: Uniform and consistent filtration performance can be achieved for all filtration accuracy, and the meshes do not change in use.
3. Wide application environment: it can be used in the temperature environment of -200℃~600℃ and the filtration of acid base environment.
4.Excellent cleaning performance: counter-current cleaning effect is good, can be repeated use, long life (can be used counter-current water, filtrate, ultrasonic, melting, baking and other cleaning methods)
Filter Plater And Tube Application:
1. Precise filtration of various hydraulic oils and lubricants in the mechanical industry;
2. Filtration and purification of various polymer melts in chemical fiber thin film industry, filtration of various high-temperature and corrosive liquids in petrochemical industry, filtration, washing and drying of materials in pharmaceutical industry;
3. Application of gas homogenization in powder industry, fluidized plate in iron and steel industry;
4. Dividers in explosion-proof electrical appliances, etc.
5.Used for high pressure backwash oil filter

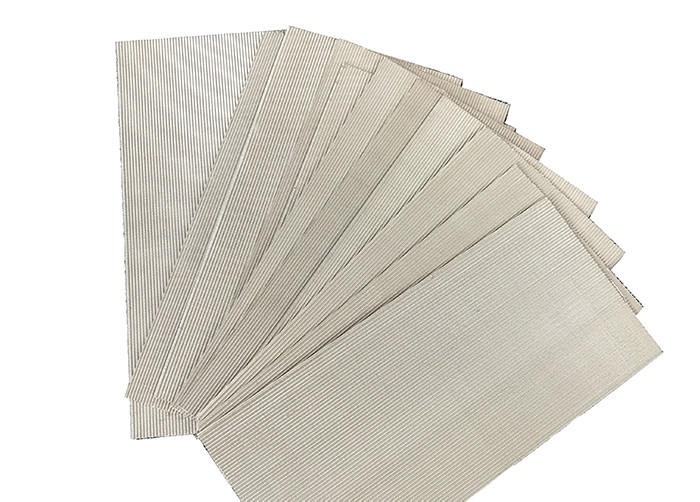

Product show:
