    Stable 100mesh 0.15m Hole Woven Wire Mesh Filter Excellent Efficiency

    Ask Lasest Price
    Brand Name : BAITONG
    Model Number : BT-008
    Certification : ISO-9001
    Price : Negotation
    Payment Terms : L/C, T/T
    Supply Ability : 100 piece per day
    Delivery Time : 5-30days
    • Product Details
    • Company Profile

    Stable 100mesh 0.15m Hole Woven Wire Mesh Filter Excellent Efficiency

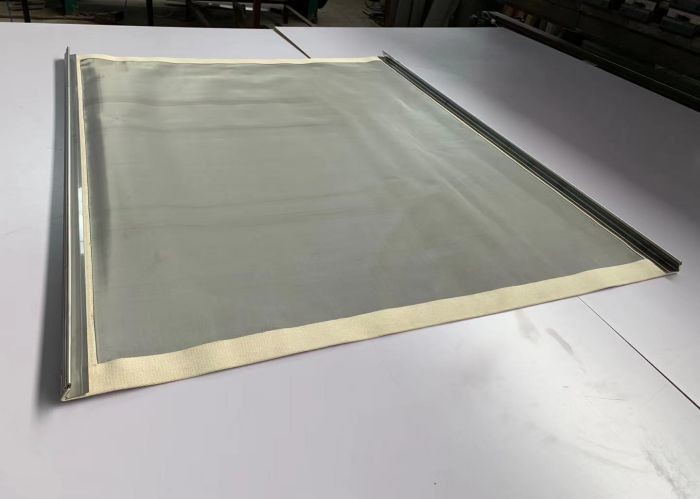

    Stianless Steel Hook Edge Screen,Cloth Wrapped Edge,Wire Mesh Filter Screen

    Product information:

    The stainless steel wrap-around screen is formed by perforating a stainless steel mesh through a cloth wrapped edge. Has excellent screening efficiency. And the plasticity is high. The overall mesh surface is uniform. It is usually used for sieving fine particles and viscous liquids. The size can be customized.


    Product details:

    Name: stainless steel Plain woven wire mesh

    Material: 304 316 316Lstainless steel

    Shape:roll /round plate/square plate

    Mesh:1-400mesh

    meshwireholeweight/per square meter(KG)
    Plain weave12mm×2mm23.42
    Plain weave21.5mm×1.5mm11.22.25
    Plain weave31.0mm×1.0mm7.4661.5
    Plain weave40.9mm×0.9mm5.451.62
    Plain weave50.8mm×0.8mm4.281.6
    Plain weave60.7mm×0.7mm3.531.47
    Plain weave70.6mm×0.6mm3.021.26
    Plain weave80.5mm×0.5mm2.6751
    Plain weave90.5mm×0.5mm2.3221.125
    Plain weave100.8mm×0.8mm1.743.2
    Plain weave110.7mm×0.7mm1.6092.695
    Plain weave120.6mm×0.6mm1.5162.16
    Plain weave130.5mm×0.5mm1.4531.625
    Plain weave140.4mm×0.4mm1.4141.12
    Plain weave150.4mm×0.4mm1.2931.2
    Plain weave160.35mm×0.35mm1.2370.98
    Plain weave170.35mm×0.35mm1.1441.041
    Plain weave180.35mm×0.35mm1.0611.1
    Plain weave190.35mm×0.35mm0.9861.16
    Plain weave200.3mm×0.3mm0.970.9
    Plain weave210.3mm×0.3mm0.9090.945
    Plain weave220.3mm×0.3mm0.8540.99
    Plain weave230.25mm×0.25mm0.8540.718
    Plain weave240.2mm×0.2mm0.8580.48
    Plain weave250.2mm×0.2mm0.8160.5
    Plain weave260.2mm×0.2mm0.7760.52
    Plain weave270.2mm×0.2mm0.740.54
    Plain weave280.3mm×0.3mm0.6071.26
    Plain weave290.3mm×0.3mm0.5751.3
    Plain weave300.3mm×0.3mm0.5461.35
    Plain weave400.25mm×0.25mm0.3851.25
    Plain weave500.2mm×0.2mm0.3081
    Plain weave600.15mm×0.15mm0.2730.675
    Plain weave700.14mm×0.14mm0.2220.686
    Plain weave800.12mm×0.12mm0.1970.576
    Plain weave900.11mm×0.11mm0.1720.544
    Plain weave1000.10mm×0.10mm0.1540.5
    Plain weave1200.08mm×0.08mm0.1310.384
    Plain weave1500.07mm×0.07mm0.0990.367
    Plain weave1800.05mm×0.05mm0.0910.225
    Plain weave2000.05mm×0.05mm0.0770.25
    Plain weave2500.04mm×0.04mm0.06160.2
    Plain weave2700.035mm×0.035mm0.0590.165
    Plain weave3000.03mm×0.03mm0.0540.135
    Plain weave3250.027mm×0.027mm0.0510.118
    Plain weave3500.025mm×0.025mm0.0470.109
    Plain weave3800.02mm×0.02mm0.0460.076
    Plain weave4000.018mm×0.018mm0.04550.0648

    Product advantages:


    1.The filter effect is very stable: in the production process selected high-quality raw materials, so that it is not easy to use in the process of deformation;
    2, the strength of large: high-quality materials with high pressure, can withstand greater work intensity;
    3, simple cleaning: single layer of filter material with a simple cleaning characteristics, especially for backwashing;
    4, with high temperature performance: the highest can withstand about 480 ℃ high temperature;
    5, with corrosion resistance: stainless steel raw materials itself has a high corrosion resistance and wear resistance;
    6, easy to process: high-quality materials, whether it is cutting, bending, stretching, welding and other procedures can be completed very well

    Product Show:
    Stable 100mesh 0.15m Hole Woven Wire Mesh Filter Excellent Efficiency
    Packing & Shipping
    1.Plastic film packaging 2.Tie packaging 3.wooden box 4.Bubble wrap
    5.customized
    Stable 100mesh 0.15m Hole Woven Wire Mesh Filter Excellent Efficiency
