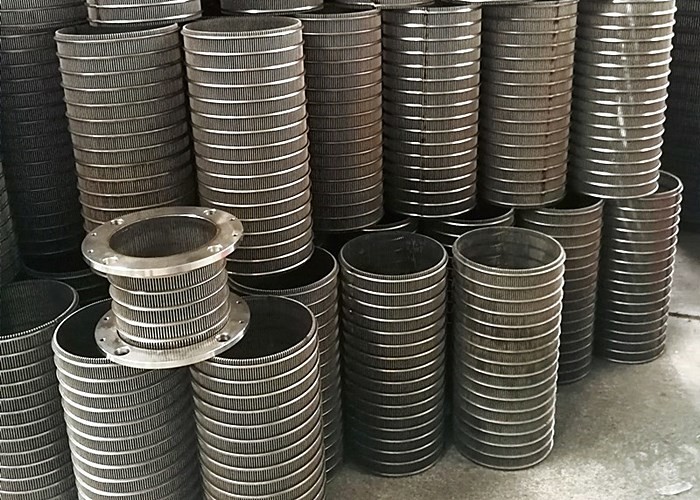

Not Easy To Block V Shaped Support Bar Stainless Steel Wedge Wire Screen Filter

Wedge Wire Screen Filter Characteristics:

Stainless Steel Wedge Wire Screen Filter are the main and the most technologically advanced line of our

products.They are reliable for using in numerous filtration processes for solid and liquid particles.

We manufacture them from profiled wires of high quality stainless and acid-proof steel.

The technology of electrofusion used for joining profiled wires for a set of supporting rods lets us obtain

extremely precise dimensions of apertures.
They work extremely well both in static structures, as well as dynamic ones, providing optimal

effectiveness of a process even in tough and aggressive work environment.

Depending on individual applications, our company offers flat welded or round welded sieves of

different size and shape, types of fittings, with a possibility to join individual elements into larger

segments.

Wedge Wire Screen Filter Specification:

- Filtration rate: 15-800μm
- OD: 25.4-1200mm, Length: 6 meter(no splice)
- Wedge filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
- The slot: 0.1mm-45mm
- Wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
- The rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50.
- Height 6-40 mm
- The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).
- Slot filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
- Styles of connection: by welding or by threaded male/female coupling.
- Hanke Filter can be customized by your demands.

Name	Stainless Steel Wedge Wire Screen Filter
OD Range	According to request and the actual flange and strengthen bar
ID Normal Size	176mm,200mm,230mm,255mm.Accroding to request
Advantage 1.	V-shaped wire structure, not easy to block
Advantage 2.	Easy to clean
Advantage 3.	Sturdy construction
Advantage 4.	Easy to install
Advantage 5.	long service life
Advantage 6.	high opening rating
End Finishing	Flange, , Metal Ring, etc

Wedge Wire Screen Filter Structure:

Stainless Steel Wedge Wire Screen Filter structure is made of parallel arrangement of screen wire and

vertical mesh support bar welding, the cross-section shape of screen bar is V-shaped,

the top of mesh bar is plane.

The lower end is a sharp angle, which lies in the mutual fusion of the support bars during spot welding.

Wedge Wire Screen Filter Application:

Stainless Steel Wedge Wire Screen Filter is widely used in water supply and drainage, chemical and

petrochemical process, mineral, paper and food processing equipment. Fixed bed reactor in chemical and

petrochemical plant is one of its main uses. It can be used in axial reactor (flat type) or radial reactor

(cylindrical type). Stainless Steel Wedge Wire Screen has many varieties and specifications,

which can be used according to customers Custom made. (our company can design and manufacture

according to customers' requirements, and provide calculation sheet and tensile test report)

Material: 316L, etc.

Wedge Wire Screen Filter Packing & Delivery
