Filter For Aquaculture Koi Pond And Pulp Downspout Wedge Wire Screen

Wedge Wire Screen Description

Downspout Sieve bend screen, also named as DSM screen, is a curved concave wedge bar type of

screens made of stainless steel wedge wires.

Wedge wire dsm screen is manufactured by welding the stainless steel V-shaped profile wires to the

wedge wire support rods. Then the wedge wire panel screens are cutting and curved into wedge wire

sieve bend screen with common 45°,60° and other degree arcs.

At last, the wedge wire sieve bends will be inserted into a stainless steel frame for easy installation

onto equipment.

Wedge Wire Screen Parameters:

1. The arc angle of the screen surface: 120° or selected arc

2. Screen width: 50um, 75um, 100um, 150um, 200um

3. Material handling capacity: 34~46m3/h4, feeding pressure: 0.2~0.4MPa

5. Screen width: 585mm, 710mm, 825mm

6.The arc radius of the screen surface: 762mm

7. The screen surface can be used in both directions and has a long service life.

Name	Downspout Wedge Wire Screen
Length Range	up to 6000mm
Width Range	up to 6000mm
Slot Range	20 um to 3000 um (Tolerance:+-5um)
Other Shapes	Can cut to any shape according to requirement, such as round, semicircle, sector, and so on.
Wedge Wire	0.5x1.5, 0.75x1.5, 1x2, 1.5x2, 2x3, 2x4, 3x5.
Support wire	1.5x2.5, 2x3, 1.8x2.5, 2x4,3x5, 3x6,3x10,4x7
Material	SS304, SS304L, SS316, SS316L, SS321 or as customer's request

Wedge Wire Screen Features:

• High filtering, sizing, dewatering performance.
• Good mechanical properties.
• Great capacity than the traditional vibrating screens.
• Corrosion and rust resistance.
• High temperature resistance.
• Low maintenance. It is easy to clean and need less maintenance.
• Non-clogging.
• Long and durable service life.
• Easy to install and replace.

Wedge Wire Screen Uses:

The Downspout Wedge Wire Screen are mainly used for dewatering, sizing and waste water cleanup

applications. They can be used in various fields, such as:

• Sewage treatment.
• Laundry wash water cleanup.
• Poultry, fish, fruit and vegetable waste water processing.
• Minerals processing.
• Paper production.
• Textile plants.

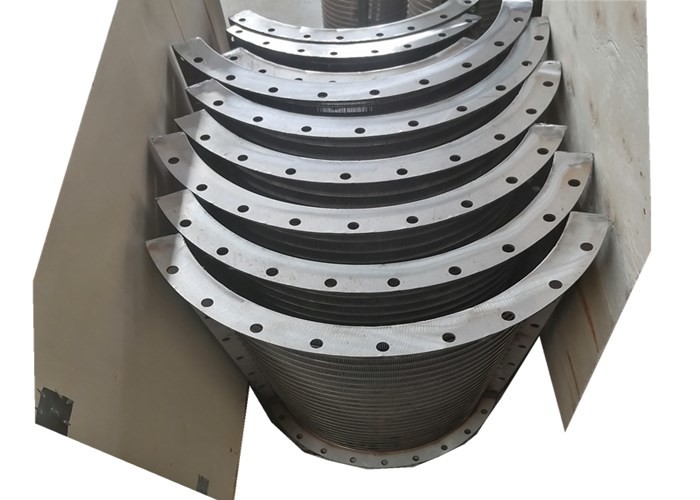

Wedge Wire Screen Packing&details:
